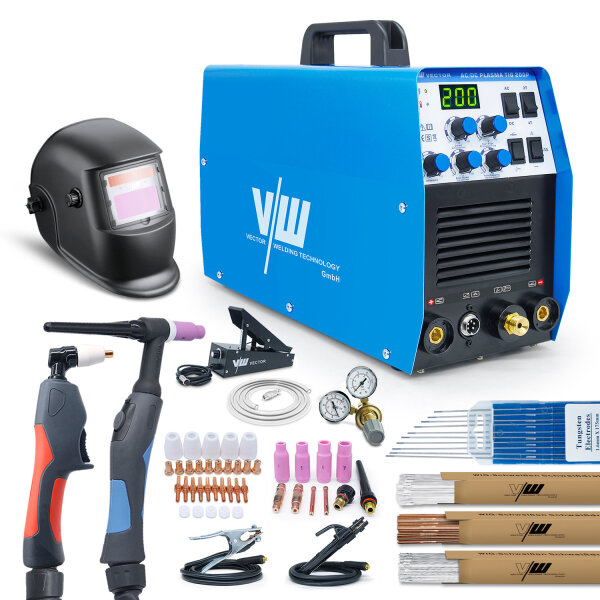

AC/DC TIG welder SET with 50A plasma cutter, helmet, foot pedal & accessories | 200P Analog

SKU: K2001SET1
GTIN: 4251210410806
Category: TIG-CUT
Brands: VECTOR WELDING

AC/DC TIG welder SET with 50A plasma cutter, helmet, foot pedal & accessories | 200P Analog

COMPLETE SET: AC/DC TIG welder with plasma cutter - analog
Power ranges: TIG 10-200A, MMA 30-170A, Plasma 50A
HF ignition for clean ignition in TIG mode
Reliable analog operation for direct control
Efficient IGBT technology for stable performance
With automatic welding helmet, foot pedal & extensive accessories

629,41 €

excl. 19% VAT , plus (Standard)

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

AC/DC TIG welder with plasma cutter 200P Analog

The 200P combination unit from Vector Welding is the perfect choice for anyone looking for a reliable, powerful yet easy-to-use welding machine - whether you are a hobbyist or a professional.

This set combines AC/DC TIG welding, MMA/electrode and plasma cutting in one robust unit with analog control - particularly popular with users who prefer clear, direct control without digital menus.

Thanks to HF ignition and precise AC function, aluminum can be welded as well as steel, stainless steel and other conductive materials. With a welding current range of 10-200A (TIG) and 30-170A (MMA) and Plasma CUT up to 40A, you are ideally equipped for almost any project - from car body construction to the repair of railings or machines.

Whether in the workshop or in the garage at home - the 200P Analog offers you a well thought-out overall package with many functions, high performance and simple operation - including all important accessories (helmet, gloves, wear parts, etc.) so that you can get started right away.

Why this device?

3in1 combination device: AC/DC TIG, MMA/STICK, plasma cutter
TIG AC/DC: Ideal for steel, stainless steel, aluminum, etc.
HF ignition: Clean arc start without contact
MMA/electrode: Flexible use with coated electrodes
Hotstart, Arc-Force & Anti-Stick: More control, less frustration
Plasma cutter: For precise cutting of all conductive metals
Max. Cutting thickness: up to 12 mm, quality cut up to 8 mm
IGBT technology: efficient & durable

Technical data:

TIG welding current	10 - 200 A
MMA/electrode	30 - 170 A
Plasma cutting (CUT)	20 - 40 A
ED TIG	200 A @ 40% / 126 A @ 100%
ED MMA	170 A @ 25% / 85 A @ 100%
ED CUT	40 A @ 40% / 15 A @ 100%
Mains voltage	230 V ± 15%
Mains frequency	50 - 60 Hz
Input current (effective / max.)	15.4 A / 30.9 A
Generator output recommended	min. 10 kVA
Protection class	IP23
Insulation class	H
Dimensions (L x W x H)	425 x 152 x 291 mm
weight	9.5 kg
Standards	EN 60974-1 / IEC 60974-1
Cooling	Fan-cooled
Device type	Inverter power source

:	Basic Series
Shipping weight:	25,95 kg
Item weight:	21,15 kg

Welding current setting range (TIG)	10-200 A
Welding current setting range (MMA/electrode)	30-170 A
Setting rangePlasma cutting (CUT)	20 - 40 A
Duty cycle(ED) TIG	200A at 18V 40% 126 A at 15V 100%
Duty cycle(ED) MMA	170A at 26.8V 25% 85 A at 23.4V 100%
Duty cycle (ED)CUT	40A at 96V 40% 15 A at 90V 100%
Mains voltage	230V+/- 15%
Mains frequency	50 -60 Hz
Effective input current	15,4A
Input current (max.)	30,9A
Required design of the single-phase generator	10 kVA
Degree of protection	IP23
Insulation class	H
Dimensions in mm (L x W x H)	425 x 152 x 291
Weight in kg	9,5
Standards	EN60974-1 / IEC 60974-1
Cooling	Fan cooled
Welding machine type	Power sources according to inverter principle
